Power Supply Options for Workshop Gantry Cranes

Workshop gantry cranes are essential lifting equipment widely used in various industries such as manufacturing, metalworking, assembly, and maintenance facilities. These cranes offer flexibility in lifting and moving heavy materials across the workshop floor. However, one critical aspect that directly affects their performance, safety, and maintenance is the power supply system. Choosing the right power supply option not only ensures consistent operation but also enhances safety and reduces downtime.

Among the most common power supply options for workshop gantry cranes are cable reels, conductor bars, and festoon systems. Each of these systems has distinct advantages and limitations, and their suitability depends on specific application conditions such as crane type, movement distance, environment, and cost considerations.

1. Cable Reel System

What Is a Cable Reel?

A cable reel is a drum-like device that winds and unwinds an electrical power cable as the gantry crane moves along its path. It is typically spring-loaded or motorized and automatically retracts or releases the cable depending on the position of the crane.

Types of Cable Reels

• Spring-Driven Reels: Use a spring mechanism to retract the cable.
• Motor-Driven Reels: Use an electric motor to control the winding and unwinding of the cable. Better suited for longer travel lengths or heavier cables.

Advantages

• Simplicity: Easy to install and operate in most workshop settings.
• Compact Design: Ideal for cranes with short to medium travel lengths.
• Cost-Effective: Typically less expensive than other methods for small-scale applications.

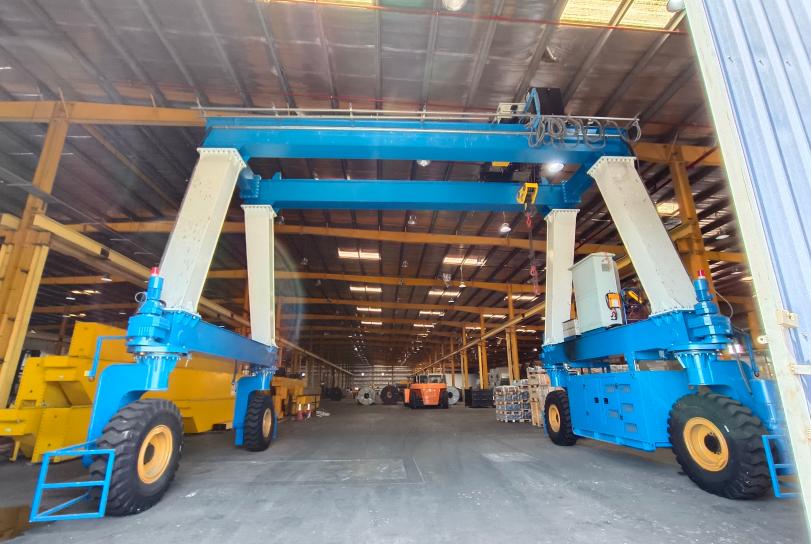

• Good Mobility: Particularly useful for mobile gantry cranes (e.g., rubber tyred or trackless types) within workshops.

Limitations

• Wear and Tear: Continuous winding and unwinding may wear out the cable over time.
• Cable Bending Radius: Requires attention to the bending radius of the cable to avoid damage.
• Limited Travel Length: Not ideal for very long runways (e.g., over 50 meters).

Ideal Applications

Cable reels are well-suited for small to medium-sized workshop gantry cranes with moderate travel distances and indoor environments. They are often used in trackless mobile gantry cranes where traditional conductor systems cannot be applied.

2. Conductor Bar System

What Is a Conductor Bar?

A conductor bar system (also known as sliding bar or power rail system) consists of rigid bars, usually made of copper or aluminum, which are mounted along the crane runway. A current collector, mounted on the crane, slides along these bars to draw power as the crane moves.

Types of Conductor Bars

• Insulated Conductor Bars: Provide improved safety through insulation, suitable for indoor environments.
• Open Conductor Bars: Often used in outdoor or heavy industrial applications.
• Single or Multi-Bar Systems: Depending on power requirements (three-phase, ground, etc.)

Advantages

• Continuous Power Supply: Delivers stable and uninterrupted power over long distances.
• Durability: Low maintenance and long-lasting in controlled environments.
• Compact Installation: Neatly mounted along the runway, minimizing floor-level obstruction.
• Safety: Insulated versions significantly reduce the risk of accidental contact.

Limitations

• Complex Installation: Requires professional installation and alignment.
• Higher Initial Cost: Slightly more expensive than other options upfront.
• Less Suitable for Mobile Cranes: Generally used for fixed runway cranes only.

Ideal Applications

Conductor bar systems are ideal for fixed track gantry cranes used in medium to large workshops, particularly where cranes travel over long distances (up to 200 meters or more). They are often applied in rail-mounted gantry cranes (RMGs) and double girder workshop cranes.

3. Festoon System

What Is a Festoon System?

A festoon system uses a series of trolleys or carriages that hold the power cables or air hoses and allow them to move along a track. The cables loop in a "festoon" shape and stretch or retract as the crane moves.

Types of Festoon Systems

• Cable Festoon Systems: Carry electrical power cables.
• Hose Festoon Systems: For pneumatic or hydraulic lines.
• Flat Cable or Round Cable Types: Depending on flexibility and space constraints.

Advantages

• Flexibility: Can handle power, control, and data cables in the same system.
• Reliable Performance: Simple mechanism with few moving parts.
• Cost-Effective for Short Runs: Ideal for short-to-medium travel distances.
• Easy Maintenance: Visual inspection and replacement of parts are simple.

Limitations

• Cable Drag and Wear: Movement causes wear on cables and trolleys.
• Physical Obstruction: Festoon loops may interfere with workspace if not properly managed.
• Speed Limitation: Not ideal for high-speed crane applications.

Ideal Applications

Festoon systems are commonly used in workshop gantry cranes, bridge cranes, and jib cranes, especially in short to medium travel distances (up to 60 meters). They're preferred when multiple cable types (power + control) need to be managed simultaneously.

Choosing the Right Power Supply Option: Factors to Consider

Selecting the right power supply system for your workshop gantry crane involves evaluating several key factors:

1. Crane Travel Distance

• Short (≤ 30m): Festoon or cable reel
• Medium (30m - 80m): Festoon or conductor bar
• Long (> 80m): Conductor bar system preferred

2. Crane Mobility

• Fixed Gantry Cranes: Conductor bar or festoon
• Mobile Gantry Cranes: Cable reel (especially spring-driven) is ideal

3. Environment

• Indoor Use: All systems are suitable, with conductor bar offering the cleanest setup.
• Outdoor or Dusty Areas: Festoon systems with covered trolleys or weatherproof cable reels are better.

4. Power Requirements

• Heavy Duty Use (High amperage): Conductor bar
• Moderate Power Demand: Cable reel or festoon

5. Maintenance and Safety

• Conductor bars require less frequent maintenance but higher upfront precision.
• Festoon systems are easy to maintain and inspect.
• Cable reels need periodic spring or motor inspections and cable condition checks.

Aicrane Workshop Gantry Crane Solutions

At Aicrane, we understand that workshop environments vary greatly. That’s why we offer customizable power supply options for our full range of single girder, double girder, and mobile gantry cranes. Whether your application calls for:

• Compact cable reel solutions for mobile or trackless gantry cranes
• Long-distance conductor bar systems for fixed rail gantry cranes
• Versatile festoon systems for cranes requiring both power and control cabling

we can configure the best fit to ensure optimal performance, safety, and longevity of your crane equipment.

Conclusion

Power supply systems for workshop gantry cranes are not one-size-fits-all. The choice between cable reels, conductor bars, and festoon systems depends on your specific crane type, operational environment, and technical needs. Each option offers unique benefits and trade-offs, and a well-informed decision can result in increased uptime, safer operations, and lower long-term costs.

If you're unsure which power supply system best suits your application, the Aicrane team is ready to help. We offer customized consultation, design, and installation support to make sure your workshop crane setup is both efficient and future-proof.
