Lifting Long Steel Pipes with Specialized Overhead Cranes

In industries such as oil and gas, construction, infrastructure, and manufacturing, steel pipes—especially long and heavy ones—are critical materials for various structural and transportation needs. These pipes often span several meters in length and can weigh several tons, requiring specialized lifting equipment to ensure safe, efficient handling during manufacturing, storage, and shipping. Overhead cranes designed specifically for lifting long steel pipes play a pivotal role in achieving this objective. This article explores the design considerations, operational practices, safety mechanisms, and advantages of using specialized overhead cranes for long steel pipe handling.

The Challenges of Lifting Long Steel Pipes

Before diving into crane solutions, it's important to understand the inherent challenges associated with handling long steel pipes:

1. Length and Flexibility: Long steel pipes can range from 6 meters to 18 meters or more in length. Their length creates a risk of bending, sagging, or bowing if not lifted evenly.
2. Weight Distribution: Pipes may have varying wall thicknesses or coatings that result in uneven weight distribution.
3. Surface Protection: Pipes are often coated with anti-corrosion material. Mishandling can cause dents or scratches, compromising their integrity.
4. Storage Constraints: In facilities with limited space, maneuvering long pipes requires precision and efficient equipment to avoid collisions and stacking issues.
5. Workplace Safety: Improper lifting techniques can lead to pipe slippage, swing hazards, or crane instability, endangering workers and equipment.

To address these issues, manufacturers and heavy industry operators rely on specialized overhead crane systems equipped with advanced features and customized attachments.

Specialized Overhead Cranes for Long Steel Pipe Handling

Overhead cranes used in pipe handling are often double girder cranes, sometimes fitted with custom spreader beams, rotating trolleys, or synchronized hoists. Key types include:

1. Double Girder Overhead Cranes

Double girder designs are preferred due to their enhanced load-bearing capacity and span length. These cranes can support longer beams and provide stability when transporting extended loads like steel pipes.

2. Multiple Hoist Overhead Cranes

Equipped with two or more hoists on a single bridge, this configuration allows operators to lift a pipe from multiple points simultaneously, preventing bending or sagging. The hoists can work in synchronized or independent modes.

3. Spreader Beam Cranes

Spreader beams distribute the load evenly and ensure balanced lifting, especially important for long pipes. Custom-designed beams with adjustable lifting points can accommodate different pipe lengths and diameters.

4. Rotating Trolley Cranes

Some applications require rotating the pipe during positioning or storage. Overhead cranes with 360-degree rotating trolleys offer enhanced maneuverability.

5. Semi-Automatic and Fully Automated Cranes

Automated systems equipped with sensors, PLC controls, and anti-sway systems can manage repetitive pipe lifting and stacking tasks with high precision and reduced labor intervention.

Key Design Features and Components

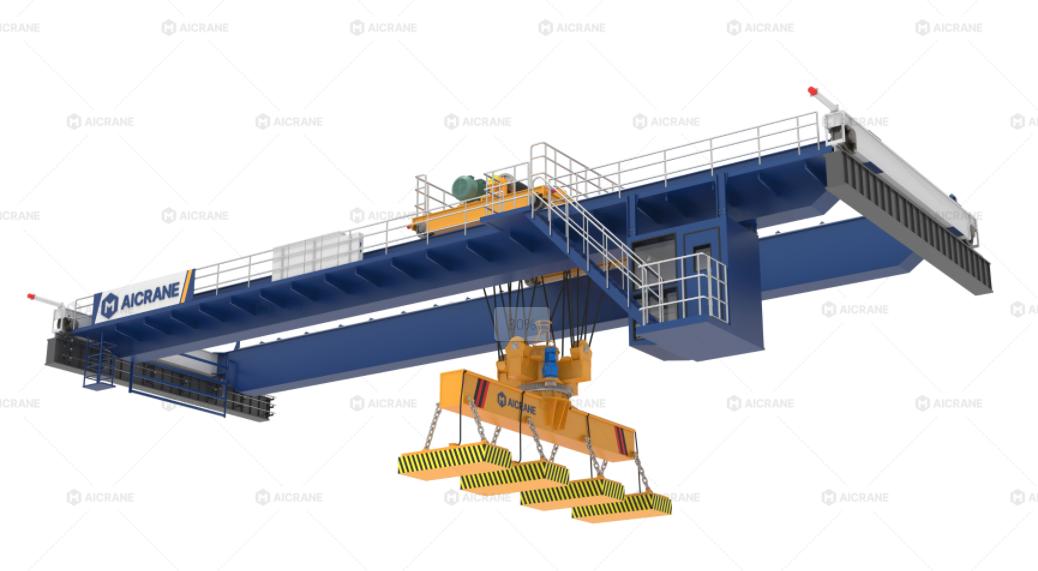

A specialized magnetic overhead crane for steel pipe handling includes a combination of components tailored to ensure operational efficiency and safety:

• Custom End Carriages: Designed for smooth travel across wide bays while supporting heavy and long loads.
• Adjustable Lifting Points: Hoists or spreader beams allow for variable positioning depending on pipe size.
• Load Monitoring Systems: Ensure that lifting does not exceed safe load limits, protecting both the crane and the material.
• Anti-Sway Technology: Reduces pendulum motion during travel, which is critical when moving long, unstable loads.
• Remote Controls: Operators can handle pipes from a safe distance, improving visibility and reducing the risk of accidents.
• Safety Brakes and Redundancies: Emergency stop systems, overload protection, and fail-safe brakes help avoid mishandling or catastrophic failure.

Operational Practices for Safe and Efficient Handling

Even with the right equipment, proper operational procedures are essential. Below are best practices when handling long steel pipes:

1. Pre-Lift Inspection

• Inspect the crane, hoists, slings, and spreader beams before use.
• Confirm the pipe’s weight, length, and any special handling requirements.

2. Balanced Lifting

• Use multiple lifting points and ensure symmetrical placement.
• Check for even tension in all lifting slings.

3. Controlled Movement

• Engage anti-sway systems and move slowly, especially when operating near personnel or obstacles.
• Avoid sharp turns or abrupt starts/stops.

4. Team Coordination

• Ensure all team members are aware of the lifting plan.
• Use clear signals or communication systems to coordinate movement.

5. Proper Storage

• Pipes should be placed on padded supports to prevent surface damage.
• Stack pipes in a stable configuration to prevent rolling or shifting.

Applications Across Industries

Specialized overhead cranes for long pipe lifting are widely used in various industries, including:

• Steel Mills: Transferring newly manufactured pipes from production lines to storage.
• Pipe Coating Plants: Handling coated pipes without surface damage.
• Oil and Gas Facilities: Moving pipes used in drilling or transport infrastructure.
• Shipyards and Marine Construction: Transporting long pipes for underwater or port-based installations.
• Logistics Yards: Loading and unloading pipes from railcars or flatbed trucks.

Case Study: Overhead Crane in a Pipe Fabrication Plant

A pipe fabrication plant in Southeast Asia required an efficient solution for handling 12-meter-long steel pipes weighing up to 2 tons each. A custom-designed double girder overhead crane was installed with two synchronized hoists and a modular spreader beam. The system enabled the plant to move, rotate, and position pipes with minimal manpower and significantly reduced handling time. Automated controls enhanced worker safety, while the precision of synchronized lifting reduced pipe deformation risks. Overall production throughput increased by 25% after installation.

Benefits of Using Specialized Overhead Cranes

Investing in a specialized crane system for long steel pipes offers several tangible advantages:

• Enhanced Safety: Reduces risk of injury and material damage.
• Increased Efficiency: Quicker, more reliable operations lead to higher throughput.
• Improved Product Quality: Minimizes handling damage such as scratches or dents.
• Operational Flexibility: Adjustable systems accommodate a wide variety of pipe lengths and diameters.
• Reduced Labor Costs: Automated and remote-controlled systems require fewer operators.
• Compliance and Standards: Purpose-built cranes ensure adherence to safety and load-handling regulations.

Conclusion

Lifting long steel pipes is a challenging yet crucial task in many industrial applications. Specialized overhead cranes, equipped with features such as multiple hoists, spreader beams, and anti-sway controls, offer a reliable solution for safe and efficient pipe handling. By investing in the right equipment and adhering to best operational practices, companies can protect their workers, reduce damage to expensive materials, and boost overall productivity. As demand for steel pipe applications continues to grow globally, the role of advanced crane systems in supporting this segment becomes ever more essential.
