Key Load Factors Determining Overhead Crane Rated Capacity

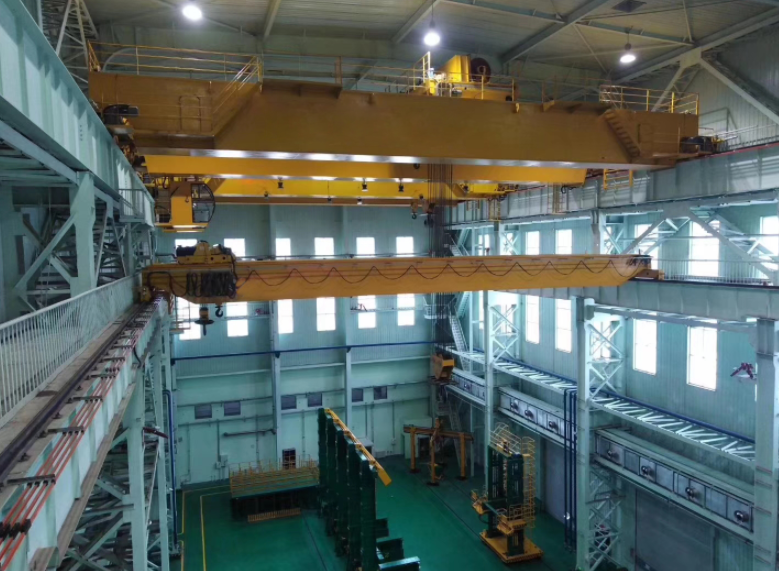

Overhead cranes, also known as bridge cranes, are critical equipment in industries ranging from steel mills and manufacturing plants to shipyards and warehouses. They are designed to lift, move, and precisely position heavy loads across a defined workspace. While the basic purpose of an overhead crane seems straightforward—lifting heavy objects—determining the crane's rated capacity is a complex process. The rated capacity is not solely a function of the crane’s motor strength or beam size; it is influenced by several load factors, each of which affects the crane’s performance, safety, and operational longevity. Understanding these key load factors is essential for engineers, plant managers, and operators to select the right crane and ensure safe, efficient operation.
1. Load Weight
The most obvious factor in determining a crane's rated capacity is the weight of the load. The rated capacity refers to the maximum load the crane can safely lift under standard conditions. This is typically measured in tons or kilograms. However, it’s critical to recognize that the “weight” of a load is not always static. Certain materials, especially liquids or bulk goods, may shift during lifting, increasing dynamic forces on the crane. Engineers must account for the maximum possible weight of the load, including any additional equipment such as slings, spreader bars, or lifting hooks. Failure to consider the true load weight can lead to overloading, structural damage, or catastrophic failure.
2. Load Center Distance
The load center refers to the point at which the weight of the load is considered to act. In many cases, loads are not perfectly balanced, and their center of gravity may not align with the crane hook. When the load center shifts farther from the crane’s hook or trolley, it creates additional moments, or turning forces, on the crane structure. This increases stress on the bridge, end trucks, and supporting rails. For example, lifting a long beam from its end rather than its center produces greater torque and reduces the effective rated capacity of the crane. Overhead crane manufacturers typically provide rated capacity charts that specify the maximum load for different load center distances.
3. Load Geometry and Shape
The shape of the load significantly affects how the crane handles it. Uniform, compact loads are easier to lift and stabilize compared to irregular or elongated objects. Long, asymmetrical loads like pipes, beams, or panels introduce lateral forces and rotational tendencies, requiring careful planning and sometimes multi-point lifting solutions. A load that is wide but light may seem harmless, yet its extended dimensions can affect the crane’s stability and reduce its rated capacity. Understanding load geometry is crucial, especially for tandem or multiple-crane lifts, where coordination and load distribution are essential.
4. Load Distribution
Load distribution describes how the weight of the load is spread across the lifting points. Uneven or off-center load distribution can create high localized stresses on the crane, particularly on the hoist and trolley mechanisms. For instance, lifting a coil of steel with the coil’s center of gravity not aligned with the crane hook causes tilting, which places additional bending moments on the crane girder. Engineers often use load distribution analysis to determine if shims, spreader beams, or multiple hoists are needed to achieve balanced lifting and prevent structural overloading.
5. Dynamic Effects
Lifting a load is rarely a purely static operation. Movement of the crane, sudden starting or stopping, and environmental forces all introduce dynamic effects, which can momentarily increase the load on the crane beyond its nominal weight. These effects, often referred to as impact factors, can significantly reduce the effective rated capacity. For example, a 10-ton load lifted with a rapidly accelerating hoist may exert an instantaneous force equivalent to 12 or 13 tons. Similarly, wind forces on outdoor cranes can amplify these dynamic loads. Crane designers incorporate safety factors to account for dynamic effects, ensuring the crane operates safely under real-world conditions.
6. Lift Height and Radius
The height of the lift and the radius of operation are also critical factors. The further a load is lifted or the farther it extends horizontally from the crane girder, the greater the bending moments on the crane structure. High lifts increase the potential for lateral sway, which can destabilize the load and the crane itself. EOT crane manufacturers often provide derating factors for lifts at higher elevations or at extreme reaches to ensure structural integrity is maintained.
7. Frequency of Operation
Overhead cranes are designed to handle specific duty cycles, which describe the expected frequency and duration of lifting operations. A crane that lifts its rated load once a day is subject to different stress patterns than a crane lifting similar loads multiple times per hour. Frequent lifts generate cumulative fatigue on structural and mechanical components, which can affect long-term rated capacity. Duty classifications, such as CMAA Class A through F, are used to define the intensity of crane operation and determine the appropriate rated capacity for long-term safe use.
8. Type of Hoist and Rigging
The type of hoist and rigging used to lift a load impacts the crane’s rated capacity. Electric wire rope hoists, chain hoists, and hydraulic hoists each have different load-handling characteristics. Similarly, rigging arrangements—such as single-point hooks, spreader bars, slings, and lifting beams—affect load stability and force distribution. Using improper hoisting or rigging methods can concentrate stress on certain crane components, effectively reducing its safe lifting capacity. Proper rigging ensures that the crane’s rated capacity is not exceeded and that the load remains stable throughout the lift.
9. Environmental and Operational Conditions
Environmental factors such as temperature, wind, and humidity can influence the effective rated capacity of an overhead crane. Extreme temperatures may affect the strength of steel components or the performance of electrical and hydraulic systems. Outdoor cranes must contend with wind forces that can act on both the load and crane structure, potentially creating torsional or lateral stresses. Similarly, vibration-prone environments or unstable flooring conditions can reduce the crane’s rated capacity, necessitating operational adjustments or derating.
10. Safety and Regulatory Considerations
Finally, safety codes, standards, and regulations often dictate the rated capacity and allowable working loads for overhead cranes. Organizations such as the American National Standards Institute (ANSI), the Crane Manufacturers Association of America (CMAA), and the Occupational Safety and Health Administration (OSHA) provide guidelines to ensure safe operation. Compliance with these standards may require reducing the rated capacity from theoretical maximums to accommodate factors like impact loads, operator experience, and potential for misuse. Following these regulations is not only legally required but also critical to preventing accidents and prolonging crane lifespan.
Conclusion
Determining the rated capacity of an overhead crane is far more complex than simply selecting a crane that can lift a specified weight. Engineers and operators must consider multiple load factors, including weight, load center, geometry, distribution, dynamic effects, lift height, frequency of operation, hoisting method, environmental conditions, and regulatory standards. Each factor influences how the crane performs under real-world conditions and ensures that the equipment operates safely, efficiently, and reliably over its lifetime. By carefully analyzing these key load factors, businesses can optimize crane selection, minimize risk, and achieve maximum operational efficiency while maintaining safety standards. Proper planning and adherence to manufacturer specifications ultimately protect personnel, prevent costly downtime, and extend the operational life of the crane.
