Application of Variable Frequency Drives (VFD) in Rubber Tyred Gantry Cranes

October 11, 2025
|
Gantry Crane

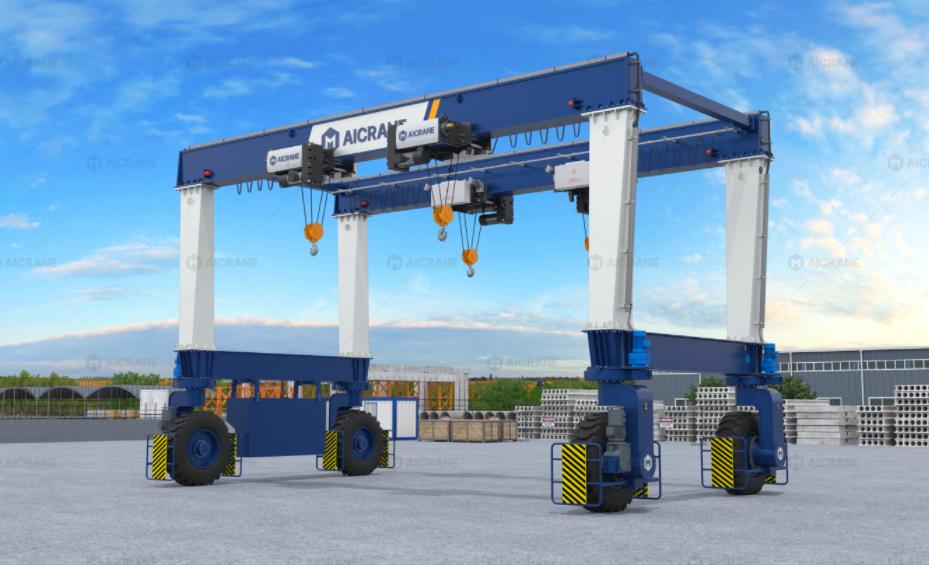

Rubber Tyred Gantry Cranes (RTGs) have become an essential piece of equipment in container yards, ports, and heavy-duty material handling facilities. They are used to stack and move containers efficiently and safely across storage areas. One key technological advancement that has significantly enhanced the performance and efficiency of RTGs is the integration of Variable Frequency Drives (VFDs). By controlling the speed and torque of electric motors, VFDs have transformed how RTGs operate, offering benefits in energy efficiency, equipment lifespan, and operational flexibility. This article explores the application, advantages, and technical considerations of VFDs in Rubber Tyred Gantry Cranes.

Understanding VFDs and Their Function

A Variable Frequency Drive is an electronic device that adjusts the speed and torque of an electric motor by varying the frequency and voltage supplied to the motor. In RTGs, electric motors drive various mechanical systems, including the hoisting mechanism, trolley travel, gantry travel, and steering. Traditionally, rubber tyred gantry cranes relied on fixed-speed motors with mechanical or hydraulic controls. However, fixed-speed systems often resulted in higher energy consumption, less precise motion control, and increased wear on mechanical components.

VFDs allow operators to precisely control motor speed, ensuring smooth acceleration and deceleration, reducing mechanical stress, and improving operational efficiency. For RTGs, this means smoother container handling, less jerking during lifting, and more stable trolley and gantry movements, all of which contribute to safer and more efficient operations.

Applications of VFDs in RTG Operations

1. Hoisting Mechanism

The hoisting mechanism in RTGs is responsible for lifting and lowering containers. These motors are subject to high torque demands, especially when lifting fully loaded containers weighing 40 tons or more.

  • Smooth Acceleration and Deceleration: VFDs enable gradual ramp-up and ramp-down of the hoist motor, preventing sudden jerks that could destabilize containers and compromise safety.
  • Precise Positioning: By modulating the motor speed accurately, VFDs allow precise vertical positioning of containers, which is critical in stacking operations.
  • Energy Efficiency: VFDs reduce energy consumption during hoisting by allowing motors to operate at variable speeds instead of full capacity at all times.

2. Trolley Travel

Trolleys in RTGs move along the girder to position the hoist over the container. The integration of VFDs in trolley motors provides several advantages:

  • Improved Motion Control: VFDs offer smooth acceleration and deceleration, reducing the risk of containers swinging or shifting during transport.
  • Enhanced Safety: Controlled trolley speed ensures safe handling in congested container yards.
  • Energy Savings: By adjusting the trolley motor speed according to load requirements, VFDs prevent unnecessary energy consumption during slow or light movements.

3. Gantry Travel

The entire RTG moves along the container yard rails on rubber tires. Gantry travel motors benefit significantly from VFDs:

  • Soft Start and Stop: VFDs eliminate sudden shocks to the mechanical components during start-up and braking, extending the lifespan of drive systems, tires, and structural elements.
  • Variable Speed Operation: RTGs can operate at lower speeds for precise maneuvering in tight spaces or higher speeds when moving between stacking zones.
  • Reduced Maintenance Costs: Smooth acceleration and deceleration reduce wear on tires, gearboxes, and drive shafts, leading to lower maintenance costs.

4. Steering and Auxiliary Systems

Some RTGs are equipped with electrically driven steering systems to improve maneuverability. VFDs can control these motors for precise movement, particularly during docking or repositioning in narrow lanes. Additionally, auxiliary systems like fans, pumps, and conveyor drives can benefit from VFDs to optimize energy use based on real-time demand.

Advantages of Using VFDs in RTGs

1. Energy Efficiency and Cost Savings

Energy consumption is a significant portion of RTG operating costs. VFDs reduce energy use by allowing motors to run at optimal speeds rather than full load continuously. According to studies, VFDs can cut energy consumption by 20% to 40% in heavy-duty crane operations, depending on the load profile and duty cycle. This reduction translates into substantial cost savings over the crane’s operational life.

2. Enhanced Operational Precision

With VFDs, operators can achieve precise motion control in all directions. Smooth starts, stops, and speed variations reduce container sway, making stacking and retrieval safer and more efficient. This is particularly important when handling high-value cargo or operating in crowded container yards.

3. Reduced Mechanical Stress and Maintenance

Traditional fixed-speed motors subject mechanical components to sudden shocks, leading to accelerated wear and higher maintenance costs. VFDs provide controlled acceleration and deceleration, which:

  • Reduces gear and gearbox stress
  • Minimizes tire wear
  • Extends the life of drive shafts and motors

Consequently, RTGs equipped with VFDs experience fewer breakdowns and require less frequent maintenance, improving uptime and productivity.

4. Improved Safety

Safety is paramount in container handling. The precise motion control offered by VFDs reduces the risk of container collisions, tip-overs, and unexpected swings. Operators can make fine adjustments to motor speeds, improving safety during delicate lifting and placement operations.

5. Flexible and Environmentally Friendly Operations

VFDs allow RTGs to operate efficiently under various conditions, including low-speed maneuvering and energy-saving modes. This flexibility not only enhances operational productivity but also reduces noise and carbon emissions, aligning with environmental regulations and sustainability goals.

Technical Considerations for Implementing VFDs in RTGs

While VFDs offer numerous benefits, proper implementation is critical:

  • Motor Compatibility: Motors must be rated for variable frequency operation. Induction motors are commonly used, but attention must be paid to insulation and thermal capacity.
  • Control System Integration: VFDs must integrate with the RTG’s control system to provide feedback on speed, torque, and position for safe and efficient operation.
  • Harmonic Mitigation: VFDs can introduce electrical harmonics that may affect other equipment. Proper filtering and grounding techniques are necessary.
  • Maintenance and Monitoring: VFDs require periodic inspection of components, including capacitors, cooling systems, and power electronics. Advanced monitoring systems can provide predictive maintenance alerts to prevent downtime.

Future Trends in RTG VFD Applications

The integration of VFDs with advanced automation and IoT technology is a growing trend in container terminals. Modern RTGs are increasingly equipped with:

  • Predictive Maintenance Systems: VFDs can provide real-time data on motor load, torque, and operational patterns, enabling predictive maintenance and reducing unplanned downtime.
  • Automation and Remote Control: VFDs allow seamless integration with automated RTG mobile gantry crane systems for fully autonomous operations, improving throughput and safety.
  • Energy Recovery: Regenerative VFD systems can feed energy back into the grid or the crane’s power system during braking, further reducing energy costs.

Conclusion

Variable Frequency Drives have become an indispensable technology in Rubber Tyred Gantry Cranes. By providing precise control over hoisting, trolley travel, gantry movement, and auxiliary systems, VFDs enhance operational efficiency, reduce energy consumption, minimize mechanical stress, and improve safety. As ports and container yards face increasing pressure to handle more cargo efficiently and sustainably, the adoption of VFDs in RTGs will continue to grow.

Through careful design, integration, and maintenance, VFD-equipped RTGs offer significant advantages for modern cargo handling operations, making them a crucial investment for any port or terminal aiming to maximize productivity while minimizing costs and environmental impact.

‍
